Application:
- CIC-TC Cable used for power, control, signal, communication and lighting circuits in commercial and industrial environments.
- Suitable for installation in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts.
- Approved for direct burial and outdoors in cable trays where sunlight resistant is required.
- Also may be installed in wet or dry locations or in areas exposed to chemicals and oils.

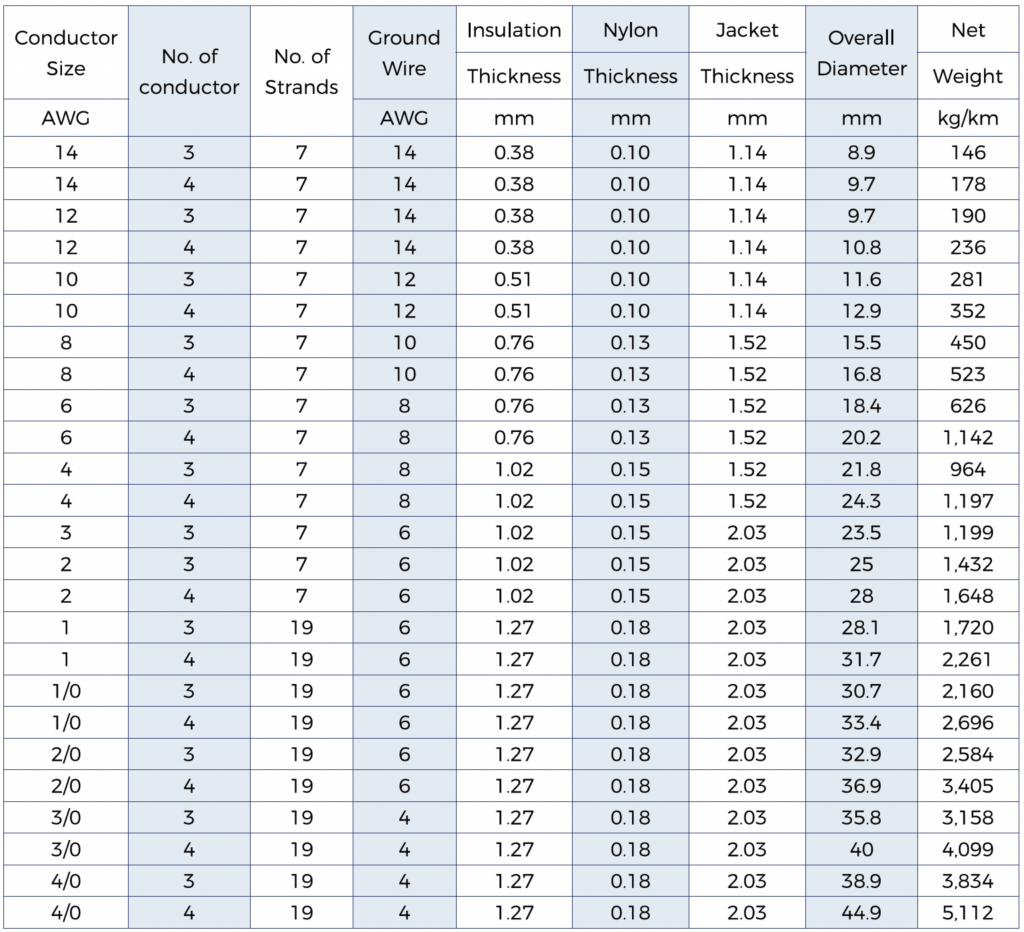

Structure:
- Conductor: Stranded annealed bare copper. Ground Conductor(Optional): One (1) bare stranded copper conductor
- Insulation: PVC/Nylon T90 Nylon. Optional Insulation: Cross-linked Polyethylene (XLPE) TYPE RW90.
- Shielding(Optional): Copper Tape Shielding(CTS, Overlap @20%)
- Outer Jacket: Flame-retardant, and sunlight resistant Polyvinyl Chloride (PVC), Black
Standard:
- C22.2 No. 230 & 239
Performance:
- Self-extinguishing and flame retardant according to CSA FT4;
- The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers;
- UV resistant;
- Direct burial rated.
